bitumen No.10 number 20 #30

General description of bitumen No.10

Bitumen No.10 is most consumable hard asphalt which is semi solid grade of pure petroleum bitumen categorized in polycyclic aromatic hydrocarbons is normally used for different purposes in the construction business.

Bitumen #20

Bitumen #20 usually means that the penetration value is around 20 dmm (decimillimeters). This grade is often used in road construction and asphalt applications, where the bitumen needs to have specific properties to ensure durability and performance. It’s important to note that different penetration grades are suitable for different climatic conditions and types of construction projects.

Bitumen number 30

Bitumen number 30 typically refers to a specific grade of bitumen, a common binder used in asphalt mixtures for road construction. The “30” in bitumen number 30 indicates the penetration value of the bitumen. Penetration is a measure of the hardness or consistency of the bitumen, and it represents the depth in tenths of a millimeter that a standard needle penetrates into the bitumen sample under specific conditions.

Uses of bitumen 10 20 and 30

1. For underground moisture, waterproofing works
2. For nuclear power engineering, pipeline engineering, bottom anticorrosion, asphalt production of the production
3. For waterproofing membrane, moisture-proof paper production, etc.
4. For Anti-corrosion paint and waterproof production
5. Used for road and bridge caulking use

Bitumen 115/15 and 10/20

Bitumen 115/15 and bitumen 10/20 are two different category of bitumen and one is oxidized grade and other one is penetration type.

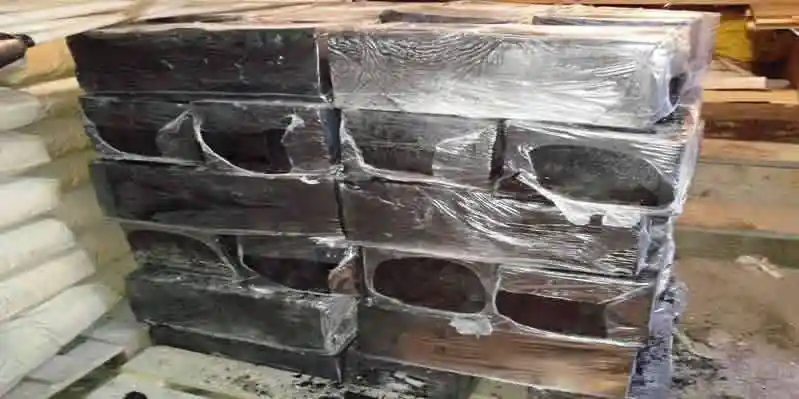

Packing of bitumen #10 No.20 Number 30

The ATDM is manufacturer of bitumen #10 20 and 30 in various packing including kraft bag, meltable plastic bag, drum and bulk,it is made by hot air in a controlled process until the desired specification is reached. The ATDM bitumen #20 can be supplied in volume quantity as well. Bitumen #30 means softening point is 90°c and penetration is 30 desimillimiter is produced in compliance and conformity to ASTM standard and meets the following specification.

Guaranty/warranty

ATDM guaranty the quality of bitumen 10 with arrangement of international inspector to check quality and quantity of the bitumen on each shipment during the loading to vessel and controlling the production by QC team via batch test report before shipping. ATDM guaranty the quality to meet with ASTM/en 13304:2009.

Data sheet of bitumen number 10&30&40

Technical indicatorsNo. 10No. 30No. 40
Penetration (25 ° C, 100 g, 5 s) / (0.1 mm)10 ~ 2526 ~ 3536 ~ 50
The ductility (25 ° C, 5 cm / min) / cm is not less than1.52.53.5
Softening point (ball method) / ? not less than957560
Solubility (trichloroethylene) /% is not less than99.5
Evaporation loss (163 ° C, 5 h) /% no more than1
After evaporation, the penetration ratio (25 ?) /% is not less than65
Flash point (open cup) / ? not less than230
Brittle / ?report

Specification of bitumen numbers 10, 20 and 30

TDS Bitumen102030

Msds of bitumen number 10, 20 and 30

MSDS of Bitumen 10/20/30
