sbs bitumen membrane

What is SBS Bitumen Membrane?

SBS Bitumen Membrane offers high-performance waterproofing for roofing and construction. Moreover, modifying bitumen with Styrene-Butadiene-Styrene (SBS) enhances its flexibility, durability, and resistance to extreme weather conditions. Due to its excellent elasticity and waterproofing properties, it is widely used in commercial, industrial, and residential projects.

How SBS Bitumen Membrane Works

SBS Bitumen Membrane creates a strong, watertight seal by firmly adhering to surfaces and blocking water penetration. Moreover, its elastomeric properties enable it to expand and contract with temperature changes, minimizing the risk of cracks and leaks. Therefore, it serves as an excellent choice for regions with fluctuating climates.

Applications of SBS Bitumenous Membrane

SBS Bitumen Membrane is used for various waterproofing purposes, including:

  • Flat and Sloped Roofs: Ensures long-term protection against water damage.
  • Basements and Foundations: Prevents moisture infiltration and dampness.
  • Bridges and Tunnels: Protects structures from water ingress and corrosion.
  • Car Parks and Terraces: Offers resistance to heavy traffic and weathering.
  • Green Roofs: Provides a waterproof layer for vegetation-covered rooftops.

Types

SBS Bitumenous Membrane comes in different variations, depending on reinforcement materials and surface finishes:

  1. Polyester Reinforced Membranes – High tensile strength, suitable for heavy-duty applications.
  2. Glass Fiber Reinforced Membranes – Provides dimensional stability and rigidity.
  3. Self-Adhesive Membranes – Easy to apply without the need for torches or adhesives.
  4. Mineral-Surfaced Membranes – Features a protective granule layer for UV resistance.

Differences Between SBS and APP Bitumen Membranes

SBS and APP (Atactic Polypropylene) are two common types of modified bitumen membranes. Here’s how they differ:

  • Flexibility: SBS membranes are more elastic, while APP membranes are stiffer.
  • Installation: SBS membranes can be torch-applied or cold-applied, whereas APP is primarily torch-applied.
  • Weather Resistance: SBS is better suited for colder climates due to its flexibility, while APP performs well in hotter environments.

Thickness Options for SBS Bitumenous Membrane

SBS Bitumen Membranes come in various thicknesses to suit different applications:

  • 3mm: Suitable for light-duty waterproofing needs.
  • 4mm: Commonly used for standard roofing applications.
  • 5mm and above: Ideal for heavy-duty and high-traffic areas.

Standard Sizes of SBS Bitumenous Membrane

SBS membranes are typically available in rolls with standard dimensions such as:

  • Width: 1 meter
  • Length: 10 meters
  • Thickness: Ranges from 3mm to 5mm

Packaging and Storage Guidelines

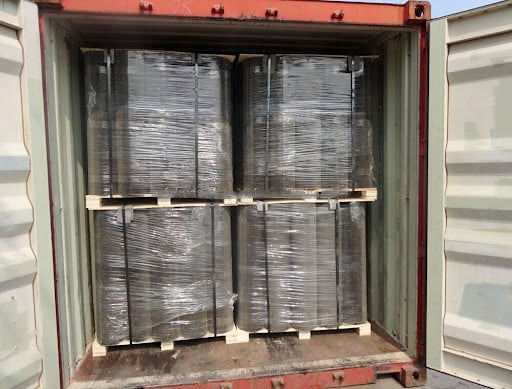

To ensure the longevity and quality of SBS Bitumen Membranes, they are packaged as follows:

  • Rolled and wrapped in polyethylene film.
  • Stored upright on pallets to prevent deformation.
  • Kept in dry, cool environments away from direct sunlight.

Ideal Climates for SBS Bitumenous Membrane

SBS Bitumen Membrane adapts well to various climates; however, it excels in specific conditions:

  • Cold Climates: Maintains flexibility and resists cracking in low temperatures.
  • Moderate to Humid Climates: Blocks moisture penetration, ensuring long-term durability.
  • Heavy Rainfall Areas: Forms a seamless, watertight barrier against water infiltration.

Installation Methods for SBS Bitumen Membrane

SBS Bitumen Membrane can be installed using different techniques:

  1. Torch-Applied Method: Uses a propane torch to adhere the membrane to the surface.
  2. Cold Adhesive Application: Applied with bituminous adhesive, suitable for heat-sensitive areas.
  3. Self-Adhesive Membranes: Easy peel-and-stick application without extra adhesives.
  4. Mechanically Fastened: Used in special applications requiring additional reinforcement.

Benefits of Using SBS Bitumenous Membrane

  • High Flexibility: Adapts to temperature changes and surface movements.
  • Excellent Waterproofing: Provides superior resistance to water penetration.
  • Durability: Long lifespan with resistance to wear and tear.
  • UV Resistance: Suitable for exposed roofing applications.
  • Easy Maintenance: Simple to repair and maintain.

In short

SBS Bitumen Membrane provides a reliable and versatile waterproofing solution for construction. Moreover, its flexibility, durability, and superior waterproofing make it ideal for applications ranging from roofing to foundation protection. By selecting the right type, thickness, and installation method, you can ensure long-lasting and effective waterproofing for your projects.
