General description of cutback bitumen SC 800
Cutback bitumen SC800 is dissolved of bitumen in solvents of kerosene. In many countries kerosene and other volatile petroleum derived products are added as a cutter or cutback agent to bitumen to reduce (or cutback) the viscosity of the bitumen. The mixture obtained may be called cutback bitumen.
The reduction in viscosity of the bitumen aids the construction of seal coats in road pavements as the softened mixture wets the chips more easily. The cutback agent evaporates from the seal coat, the cutback agent becoming a negligible component of the seal coat a few months after application. If significant amounts of the cutback agent remain in the seal coat an unwanted long term softening effect may result.
Uses of cutback bitumen SC 800
Cutback agents are used to lower the viscosity of bitumen when it is applied as a primer to the surface of a road pavement aggregate base course or substrate. Kerosene is used as a bitumen cutback agent at different concentrations according to local conditions and requirements.
The cutback bitumen SC 800 is ideal for prime coat and cold applied because of easy uses and no need to thinning and heating.
Cutback bitumen SC800 consist of initial incorporation of asphalt into the surface of non-asphalt based course preparatory to any superimposed treatment of construction.
The cutback asphalt SC800 applying to waterproofing of surfaces, plug capillary voids, coat and bond loose mineral particles.
Packing of cutback bitumen SC800

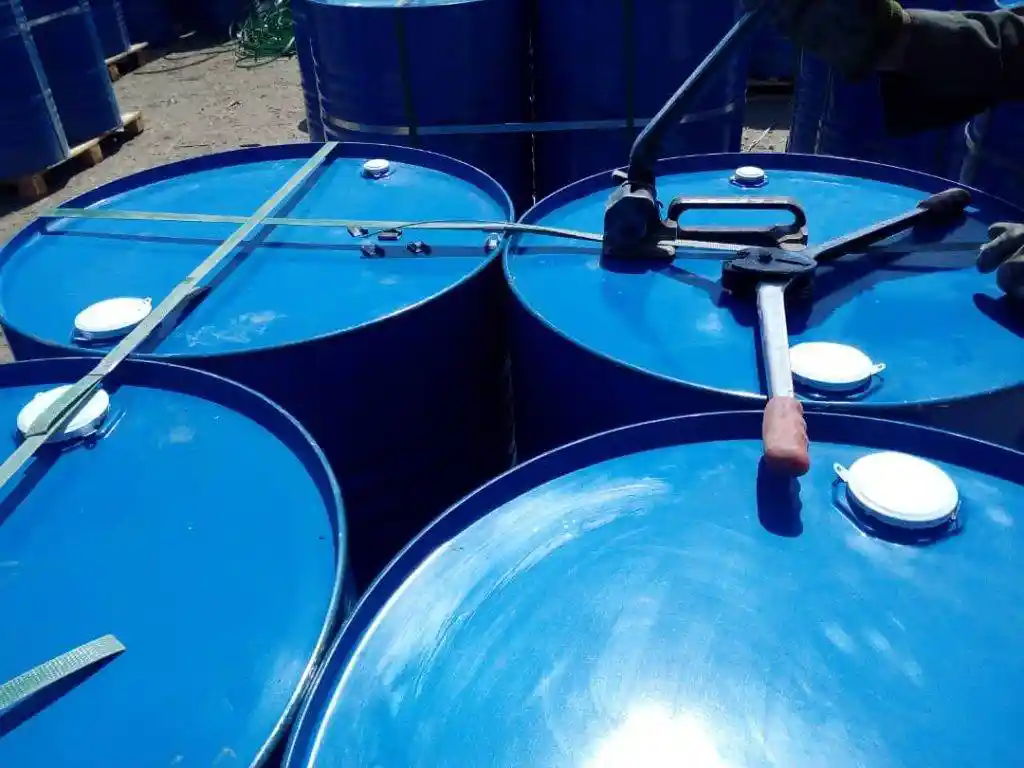

Packing of cutback bitumen SC800 is in new thick steel drum on pallet to prevent any leak inside of container also bulk in bitutainer and tanker.
Guaranty/warranty of cutback asphalt SC800
ATDM guaranty the quality of cutback SC800 with arrangement of international inspector to check quality and quantity of the bitumen on each shipment during the loading to vessel and controlling the production by QC team via batch test report before shipping. ATDM guaranty the quality to meet with ASTM/EN15322:2009
Analysis of bitumen
| Properties | Min | Max | Test Method |
| Kinemalic 1 viscosity at 60°C, eSt | 800 | 1600 | ASTM D2170 |
| Flash Point (Tag Open-Cup),°C | 90 | – | ASTM D1310 |
| Distillate test 2 : | |||
| Distillate, percent by Volume of total 360°C | |||
| To 190°C | – | – | ASTM D402 |
| To 225°C | – | – | ASTM D402 |
| To 260°C | – | – | ASTM D402 |
| To 316°C | 2 | 12 | ASTM D402 |
| Residue from distillation to 60°C: 2000 16000 | |||
| Test on residue from distillation Penetration at 25°C,100g, 5 sec. |
70 | – | |
| Ductility 3 at 25°C, cm | 100 | – | ASTM D402 / ASTM D113 |
| Solubility in trichloroethylene, percent mass | 100 | – | ASTM D402 / ASTM D2024 |
| Water, percent volume | – | 0.2 | ASTM D95 |
A: Cutback Bitumen SC-800 is a slow-curing liquid asphalt binder used for priming granular base layers, producing cold-mix asphalt, and performing surface treatments. It is ideal for applications that require deep penetration and extended curing time.
A: SC-800 cures more slowly than medium-curing (MC) or rapid-curing (RC) grades due to its heavier solvent composition. This allows for longer working time, deeper penetration, and better bonding in cooler climates or for heavy-duty road bases.
A: SC-800 typically has a kinematic viscosity of 800–1600 mm²/s at 60 °C, a flash point above 70 °C, and a residue after distillation exceeding 75%. It forms a strong, durable film that enhances adhesion between aggregates and pavement layers.
