What is Marshall Stability and Mix Design?
Introduction to Marshall Stability
Marshall Stability is a key property in bituminous mix design, used to determine the strength and load-carrying capacity of asphalt pavement. It is part of the Marshall Mix Design Method, one of the most widely used procedures for designing asphalt mixtures, especially for flexible pavements.
Purpose of Marshall Stability Test
The main goal is to:
• Measure the maximum load (in kN or lbs) a compacted bituminous specimen can withstand.
• Assess the flow value, which shows the deformation of the sample during loading.
These results help ensure the pavement has sufficient strength, durability, and flexibility under traffic loads and temperature variations.
Marshall Mix Design Procedure
Here’s a step-by-step breakdown:
1. Sample Preparation
• Bitumen 60/70 is mixed with aggregates at different percentages (e.g., 4% to 6.5%).
• Samples are compacted using a Marshall compactor (typically 75 blows per side).
2. Stability and Flow Testing

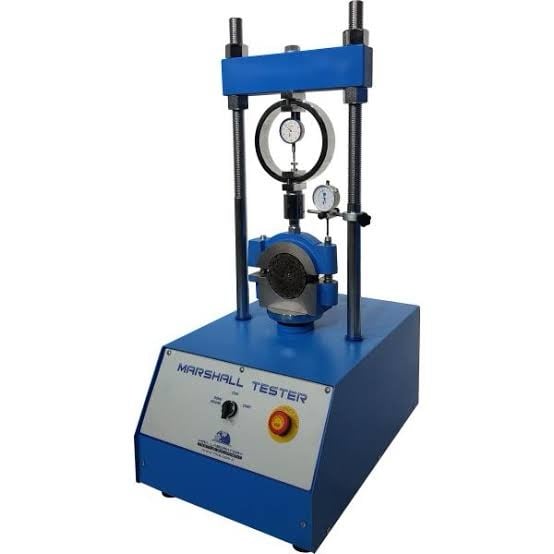

• The compacted samples are tested using a Marshall testing machine.
• Load is applied until failure, and the maximum load (Stability) and deformation (Flow) are recorded.
3. Graph Plotting
• Graphs of Stability vs. Bitumen Content, Flow vs. Bitumen Content, and Density vs. Bitumen Content are plotted.
4. Optimum Bitumen Content (OBC)
• Chosen based on:
• Maximum Stability
• Desired Flow
• Maximum Density
• Acceptable air voids (usually 3-5%)
Advantages of Marshall Mix Design
• Simple and cost-effective
• Ideal for routine quality control
• Ensures strong and durable pavements
Applications
• Widely used in highways, urban roads, airport runways
• Suitable for designing both Hot Mix Asphalt (HMA) and Warm Mix Asphalt (WMA)
Conclusion
The Marshall Stability and Mix Design method is a proven approach for producing bituminous mixes that meet specific performance criteria. By optimizing bitumen 60/70 content and assessing key properties, it ensures that roadways remain strong, durable, and safe under traffic stress.
